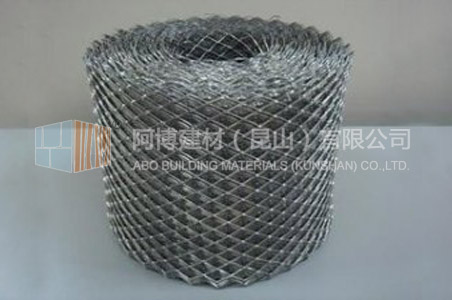

Coil lath
Coil lath
Coil lath

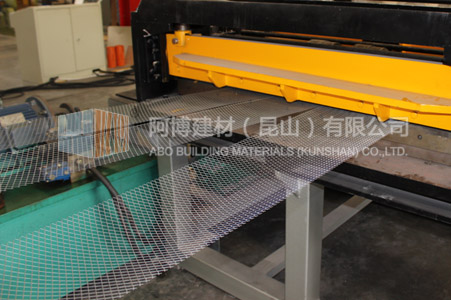

Expanded metal lath

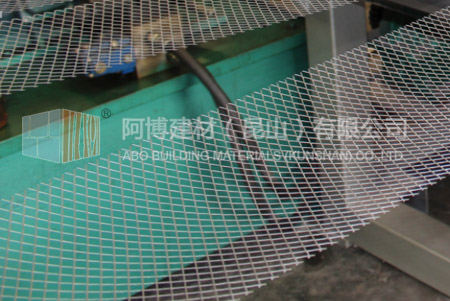

Galvanised steel Coil lath

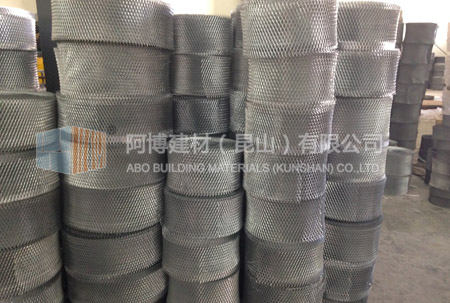

Galvanized wide Coil lath
Description
Coil lath is extensively used as a background to plaster in order to reinforce against cracks and it is especially useful at joints of dissimilar materials. The main width of Coil lath are 100mm, 150mm, 200mm, 300mm. The length can be 50/100m/ coil.
Coil lat have strengthening cornices, low walls and balconies over door and window openings.
Specification
Model |
Weight(Kg/m2) |
Coil width(mm) |
Coil length(m) |
Materials |
GCL-B 150 |
0.6 |
150 |
50
|
GI steel
|
GCL-B 200 |
0.6 |
200 |
||
GCL-L 150 |
0.91 |
150 |
||
GCL-L 200 |
0.91 |
200 |
||
GCL-M 150 |
1.11 |
150 |
||
GCL-M 200 |
1.11 |
200 |
||
GCL-H 150 |
1.61 |
150 |
||
GCL-H 200 |
1.61 |
200 |
||
GCL-E 150 |
1.85 |
150 |
||
GCL-E 200 |
1.85 |
200 |
||
GCL-S 150 |
2 |
150 |
||
GCL-S 200 |
2 |
200 |
||
SCL-B 150 |
0.6 |
150 |
SS
|
|
SCL-B 200 |
0.6 |
200 |
||
SCL-L 150 |
0.91 |
150 |
||
SCL-L 200 |
0.91 |
200 |
||
SCL-M 150 |
1.11 |
150 |
||
SCL-M 200 |
1.11 |
200 |
||
SCL-H 150 |
1.61 |
150 |
||
SCL-H 200 |
1.61 |
200 |
||
SCL-E 150 |
1.85 |
150 |
||
SCL-E 200 |
1.85 |
200 |
||
SCL-S 150 |
2 |
150 |
||
SCL-S 200 |
2 |
200 |
||
Notice: special length and width of Coil lath are available upon request. |
||||
